Proxim Tsunami GX800 620Mbps wireless
Tsunami® GX800 Carrier Grade 620Mbps Licensed Microwave Backhaul With 6
- 23 GHz Frequency Support
The Proxim Tsunami® GX800 is a high speed Point-to-Point (PtP) licensed microwave product capable of operating in 6-23 GHz licensed bands with more than 600Mbps aggregate throughput
capacity, supporting an array of user configurable channel bandwidths from 7-56 MHz. The

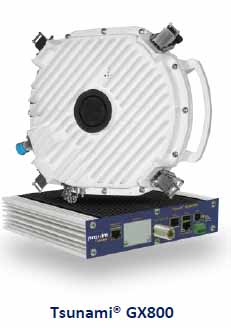

Tsunami® GX800 has an extremely small foot print and comes in a split-mount design constituting of
a compact indoor unit (IDU) and outdoor unit (ODU) that are a snap to install.
The Tsunami® GX800 Series is an outcome of Proxim's extensive RF technical expertise and years of broadband wireless access products experience. The GX800 Licensed Point-
to-Point products are technically advanced, highly reliable and very cost effective.
The Tsunami® GX800 uses highly advanced radio technology. The product is designed for PDH and Wireless
Broadband applications, utilizing modulation schemes from QPSK to 256QAM and high data rates. The product supports High Transmit Power Levels with up to +27dBm for certain frequency bands. The product is optimized for high speed Ethernet
networking and for transmission of standard E1 or E3 channels. The Proxim Tsunami
GX800 is not just another typical PDH platform. The GX800 houses a unique innovative proprietary packet system with different priority for each transmission channel. This advanced
prioritization platform intelligently allocates transmission capacity depending on modulation scheme
and channel bandwidth controlling adaptive selection of user interfaces and their
speeds.
Advantages and key features of the Proxim Tsunami® GX800 include:
- 6-23GHz Frequency band support
- Wide band support from 7-56MHz RF Channel Bandwidths
- Supports QPSK/16QAM/32QAM/64QAM/128QAM/256QAM Modulation schemes
- High Tx Power radio
- Low noise figure, low phase noise and high linearity
- Compact and lightweight design, the smallest IDU in its class
- Very high frequency stability +/- 5 ppm
- Wide operating temperature range for ODU: -45 to +55°C
- Up to 16 x E1 or 1 x E3, one Gigabit Ethernet and one Fast Ethernet traffic interfaces with true traffic capacity from 5 Mbps up to 622 Mbps.
- Capacity is dynamically allocated between E1/ E3 channels and Ethernet
- Features ATPC and Adaptive Modulation (user defined)
- Built-in Spectrum Analyzer, BER Tester, and Throughput, WAN Utilization charts
- ODU features standard direct 'slip fit' mounting
- Fully supported by Proxim Vision ES Network Management Solution
- Designed to meet FCC, ETSI and CE safety and emission standards
- Supports popular ITU-R standards and frequency recommendations
