Airmux-400P/ODU/F58F/INT Point-to-Point Radio
Carrier Class Broadband Wireless
Airmux-400P/ODU/F58F/INT Point-to-Point Radio
The RAD Airmux-400P/ODU/F58F/INT is a carrier-class radio that belongs to the RAD Airmux-400 P Series and supports 4.9 to 5.8 GHz frequency range. The Airmux-400P/ODU/F58F/INT radio complies with FCC/IC & FCC regulations with a factory default of 5.8 GHz FCC/IC. Airmux-400P/ODU/F58F/INT delivers up to 250 Mbps throughput with an integrated antenna.
Highlights of this RAD Airmux-400P include:
- 250 Mbps Ethernet net throughput
- Long range - Up to 40 km/25 miles
- Telco-grade, extremely robust in harsh conditions
- Supports intra-site and inter-site synchronization to maximize capacity
- Configurable asymmetric throughput
- Advanced OFDM & MIMO technologies for operation in nLOS/NLOS and dense radio environments
RAD Airmux-400P/ODU/F58F/INT Radio Information:
- Max Capacity 250 Mbps net aggregate throughput
- Range Up to 40 km / 25 miles

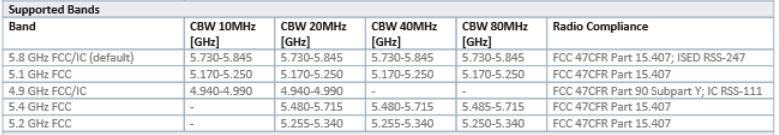

- Channel Bandwidth Configurable: 10, 20, 40, 80 MHz (for the default band)
- Modulation MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
- Adaptive Modulation & Coding Supported
- Automatic Channel Selection Supported upon power up
- DFS Supported (FCC)
- Diversity Supported
- Spectrum Viewer Supported
- Max Tx Power 25 dBm
- Duplex Technology TDD
- Error Correction FEC k = 1/2, 2/3, 3/4, 5/6
- Encryption AES 128; FIPS 197
- Support Indoor units RAD PoE devices (Airmux-PoE/GBE/ACxx)
- Uplink / Downlink Allocation Configurable: Symmetric or Asymmetric
- QoS Packet classification to 4 priority queues according to 802.1P or Diffserv
- VLAN Support 802.1Q, QinQ, 4094 VLANs
- TDD Intra Site Synchronization Supported
- TDD Inter Site Synchronization Supported through common GPS receiver per site
Data Sheet for RAD Airmux-400/P/ODU/F58F/INT PTP Radio
