RAD Data Communications - Authorized Distributor

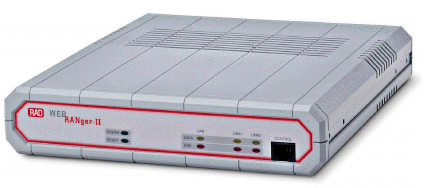

WEB RANger-II  ( WR2 ) access router

** The WR2 was replaced by the FCD-IP

WEB RANger-II ( WR2 ) is an access router, connecting small or medium-sized offices
to the Internet over a variety of WAN interfaces.

WR2/530/U 6761110000 WR2/530D/U 6761090000 WR2/DC/E1/U 6761100000 WR2/DC/T1/2U 6761510000 WR2/DC/T1/B 6763230000 WR2/DC/T1/U 6761550000 WR2/DC/T1/U/FXS 6764400000 WR2/DC/T1/U/S 6761560000 WR2/DC/T1/V24/2U/FXO 6764820000 WR2/DC/T1/V24/2U/FXS 6764810000 WR2/DC/T1/V24/U 6763010000 WR2/DC/V24/U 6760900000 WR2/DC/V24D/U 6762920000 WR2/DC/V35/U 6761300000 WR2/DC/X21D/U 6763860000 WR2/DDS/U 6761740000 WR2/DDS/V35/U 6762330000 WR2/E1/2U 6760810000 WR2/E1/U 6760550000 WR2/E1/U/FXS 6761010000 WR2/E1/U/S 6760560000 WR2/E1/V35/U 6760840000 WR2/IBU/U 6761000000 WR2/IBU/U/T1 6761050000 WR2/IBU/V35/U 6761070000 WR2/T1/2U 6760770000 WR2/T1/2U/E&M 6763880000 WR2/T1/2U/FXO 6762530000 WR2/T1/2U/FXS 6762520000 WR2/T1/2U/S 6760990000 WR2/T1/530/U/FXO 6761650000 WR2/T1/530/U/FXS 6761660000 WR2/T1/B 6760480000 WR2/T1/U 6760470000 WR2/T1/U/E&M 6760290000 WR2/T1/U/FXO 6761040000 WR2/T1/U/FXS 6760960000 WR2/T1/U/S 6760450000 WR2/T1/V35/U 6761060000 WR2/T1/V35/U/E&M 6761890000 WR2/T1/V35/U/S 6763190000 WR2/V24/2U 6760340000 WR2/V24/U 6760860000 WR2/V35/2U 6760520000 WR2/V35/U 6760500000 WR2/V35/V24/U 6760320000 WR2/V35D/U 6761080000 WR2/X21/U 6760800000

WAN services Supported on the RAD WEB RANger-II ( WR2 )  are:

T1 or fractional T1 CSU/DSU, operating at rates of up to 1.544 Mbps

E1 or fractional E1, with or without LTU, operating at rates of up to 2.048  Mbps

E1 or T1 over fiber optic links

Frame Relay with auto learn of DLCI and maintenance protocol

ISDN BRI

DDS (56 kbps)

Leased line.

RAD WEB RANger-II ( WR2 ) offers a variety of data interfaces: V.35, V.24, V.36, X.21 and RS-530.

WEB RANger-II supports IP/IPX routing and bridging.

Internet access capabilities are enhanced through:

IP Service Access Authentication provided by PAP/CHAP

Solid Firewall for protecting an office LAN from undesired entry from the Internet

NAT for sharing of several legal IP addresses between the various LAN users

Single IP address translation for connecting a small or medium office LAN
to the Internet, using a single dynamically or statically allocated IP
address

DHCP server for the sharing of IP address pools between DHCP clients on the
LAN.

The quad analog voice or sub-E1/T1 drop & insert ports provide toll-quality
voice transmission.

The fail-safe bypass of the sub-E1/T1 link ensures the continuity of voice
services in case of power supply failures.

ISDN or PSTN backup, using external dial-up modem, ensures the continuity
of data services.

Connection On Demand (COD) and Bandwidth On Demand (BOD), together with
advanced filtering, reduce communication expenses of ISDN services.

Easy configuration through a quick setup menu is performed via a terminal
attached to the control port, or via Telnet access to the device over LAN
or WAN. The SNMP agent provides management by RADview or any other standard
SNMP management station.
Application for Web RANger-II WR2 WR2/530/U 6761110000 WR2/530D/U 6761090000 WR2/DC/E1/U 6761100000 WR2/DC/T1/2U 6761510000 WR2/DC/T1/B 6763230000 WR2/DC/T1/U 6761550000 WR2/DC/T1/U/FXS 6764400000 WR2/DC/T1/U/S 6761560000 WR2/DC/T1/V24/2U/FXO 6764820000 WR2/DC/T1/V24/2U/FXS 6764810000 WR2/DC/T1/V24/U 6763010000 WR2/DC/V24/U 6760900000 WR2/DC/V24D/U 6762920000 WR2/DC/V35/U 6761300000 WR2/DC/X21D/U 6763860000 WR2/DDS/U 6761740000 WR2/DDS/V35/U 6762330000 WR2/E1/2U 6760810000 WR2/E1/U 6760550000 WR2/E1/U/FXS 6761010000 WR2/E1/U/S 6760560000 WR2/E1/V35/U 6760840000 WR2/IBU/U 6761000000 WR2/IBU/U/T1 6761050000 WR2/IBU/V35/U 6761070000 WR2/T1/2U 6760770000 WR2/T1/2U/E&M 6763880000 WR2/T1/2U/FXO 6762530000 WR2/T1/2U/FXS 6762520000 WR2/T1/2U/S 6760990000 WR2/T1/530/U/FXO 6761650000 WR2/T1/530/U/FXS 6761660000 WR2/T1/B 6760480000 WR2/T1/U 6760470000 WR2/T1/U/E&M 6760290000 WR2/T1/U/FXO 6761040000 WR2/T1/U/FXS 6760960000 WR2/T1/U/S 6760450000 WR2/T1/V35/U 6761060000 WR2/T1/V35/U/E&M 6761890000 WR2/T1/V35/U/S 6763190000 WR2/V24/2U 6760340000 WR2/V24/U 6760860000 WR2/V35/2U 6760520000 WR2/V35/U 6760500000 WR2/V35/V24/U 6760320000 WR2/V35D/U 6761080000 WR2/X21/U 6760800000
Undesired access to WEB RANger-II via Telnet or SNMP can be blocked or
protected by a password.

The two-level management authentication allows the user access to router
configuration parameters, while restricting access to network configuration
parameters.

Software download is available via the control port using XMODEM, and via
LAN/WAN using TFTP.

Parameter file download and upload is available via LAN or WAN using TFTP.

Web RANger-II WR2 WR2/530/U 6761110000 WR2/530D/U 6761090000 WR2/DC/E1/U 6761100000 WR2/DC/T1/2U 6761510000 WR2/DC/T1/B 6763230000 WR2/DC/T1/U 6761550000 WR2/DC/T1/U/FXS 6764400000 WR2/DC/T1/U/S 6761560000 WR2/DC/T1/V24/2U/FXO 6764820000 WR2/DC/T1/V24/2U/FXS 6764810000 WR2/DC/T1/V24/U 6763010000 WR2/DC/V24/U 6760900000 WR2/DC/V24D/U 6762920000 WR2/DC/V35/U 6761300000 WR2/DC/X21D/U 6763860000 WR2/DDS/U 6761740000 WR2/DDS/V35/U 6762330000 WR2/E1/2U 6760810000 WR2/E1/U 6760550000 WR2/E1/U/FXS 6761010000 WR2/E1/U/S 6760560000 WR2/E1/V35/U 6760840000 WR2/IBU/U 6761000000 WR2/IBU/U/T1 6761050000 WR2/IBU/V35/U 6761070000 WR2/T1/2U 6760770000 WR2/T1/2U/E&M 6763880000 WR2/T1/2U/FXO 6762530000 WR2/T1/2U/FXS 6762520000 WR2/T1/2U/S 6760990000 WR2/T1/530/U/FXO 6761650000 WR2/T1/530/U/FXS 6761660000 WR2/T1/B 6760480000 WR2/T1/U 6760470000 WR2/T1/U/E&M 6760290000 WR2/T1/U/FXO 6761040000 WR2/T1/U/FXS 6760960000 WR2/T1/U/S 6760450000 WR2/T1/V35/U 6761060000 WR2/T1/V35/U/E&M 6761890000 WR2/T1/V35/U/S 6763190000 WR2/V24/2U 6760340000 WR2/V24/U 6760860000 WR2/V35/2U 6760520000 WR2/V35/U 6760500000 WR2/V35/V24/U 6760320000 WR2/V35D/U 6761080000 WR2/X21/U 6760800000

WEB RANger-II ( WR2 ) product data sheet (pdf)


Immediate price quote - Call 727-398-5252 or e-mail cs@bestdatasource.com

Don't forget to ask about  RADCare support for your RAD products.
