RAD Data Communications - Authorized Distributor

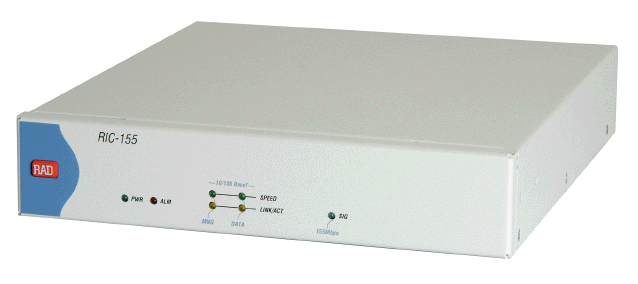

RIC-155 connects Fast Ethernet LANs over STM-1/OC-3c lines.

RIC-155 connects Fast Ethernet LANs over STM-1/OC-3c lines.
RIC-155/48/FC13L 1870130000 RIC-155/48/SC13L 1870070000 RIC-155/48/SC13MM 1870140000 RIC-155/48/SC15LH 1870200000 RIC-155/48/ST13L 1870120000  RIC-155/48/ST13MM 1870190000   RIC-155/AC/BNC 1870040000 RIC-155/AC/FC13L 1870100000 RIC-155/AC/SC13L 1870020000 RIC-155/AC/SC13MM 1870150000 RIC-155/AC/ST13L 1870110000 RIC-155/AC/ST13MM 1870220000

Typical applications for the RIC-155 from RAD are:
Transparent LAN services (see Figure 1)
Wireless and terrestrial backhaul (see Figure 2)
Enterprise connection
Low cost alternative to STM-1/OC-3c router interface.

Setup, control and monitoring of the RIC-155 are performed either inband, within the Ethernet flow or out-of-band using a dedicated port.

Management and user traffic are separated by different VLANs to ensure management security. Management options include:
ASCII terminal
Telnet server
ConfiguRAD via a Web browser
RADview, RAD’s SNMP network management application.

Fault propagation mechanism disconnects the Ethernet interface, if the STM-1/OC-3c link failure is detected.

Comprehensive diagnostic capabilities include:
Real-time alarms to alert user on fault conditions. Alarms are reported to the management station and simultaneously relayed via a dry contact port.
Ethernet and SDH/SONET link monitoring.

The STM-1/OC-3c link can be ordered in a variety of fiber optic and coaxial interfaces. See the product data sheet for more information.

RIC-155/48/FC13L 1870130000 RIC-155/48/SC13L 1870070000 RIC-155/48/SC13MM 1870140000 RIC-155/48/SC15LH 1870200000 RIC-155/48/ST13L 1870120000  RIC-155/48/ST13MM 1870190000   RIC-155/AC/BNC 1870040000 RIC-155/AC/FC13L 1870100000 RIC-155/AC/SC13L 1870020000 RIC-155/AC/SC13MM 1870150000 RIC-155/AC/ST13L 1870110000 RIC-155/AC/ST13MM 1870220000

Figure 1. RIC-155 Connecting Fast Ethernet LANs over STM-1/OC-3c lines

Key Features of the RIC-155 include:

• Connects 10/100BaseT Ethernet LANs over STM-1/OC-3c lines
• Simple and low-cost
• Conforms to the relevant sections of IEEE standards: 802.3u, 802.3x and 802.1Q
• Inband or out-of-band management via:
ASCII terminal
Web browser
Telnet
SNMP-based network management station
• Provides Ethernet and STM-1/OC-3c statistics collection
• Fault propagation of STM-1/OC-3c error conditions to Ethernet port
• Wide range of STM-1/OC-3c interfaces, including long haul, WDM fiber optic, and coaxial options

RIC-155/48/FC13L 1870130000 RIC-155/48/SC13L 1870070000 RIC-155/48/SC13MM 1870140000 RIC-155/48/SC15LH 1870200000 RIC-155/48/ST13L 1870120000  RIC-155/48/ST13MM 1870190000   RIC-155/AC/BNC 1870040000 RIC-155/AC/FC13L 1870100000 RIC-155/AC/SC13L 1870020000 RIC-155/AC/SC13MM 1870150000 RIC-155/AC/ST13L 1870110000 RIC-155/AC/ST13MM 1870220000


Figure 2. RIC-155 Connecting Fast Ethernet LANs over a Wireless STM-1/OC-3c Link

RIC-155 product data sheet (pdf)

Commonly ordered:

RIC-155/48/FC13L 1870130000
RIC-155/48/SC13L 1870070000
RIC-155/48/SC13MM 1870140000
RIC-155/48/SC15LH 1870200000
RIC-155/48/ST13L 1870120000
RIC-155/48/ST13MM 1870190000
RIC-155/AC/BNC 1870040000
RIC-155/AC/FC13L 1870100000
RIC-155/AC/SC13L 1870020000
RIC-155/AC/SC13MM 1870150000
RIC-155/AC/ST13L 1870110000
RIC-155/AC/ST13MM 1870220000

Immediate price quote - Call 727-398-5252 or e-mail cs@bestdatasource.com

Don't forget to ask about  RADCare support for your RAD products.
