RAD Data Communications - Authorized Distributor

Optimux-45 Fiber Optic Multiplexer from RAD

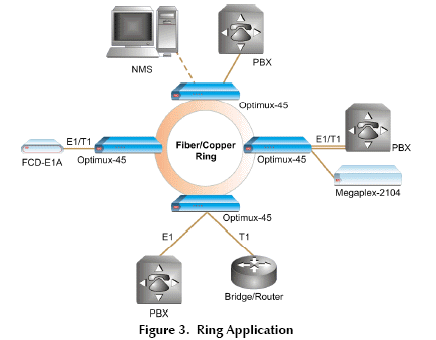

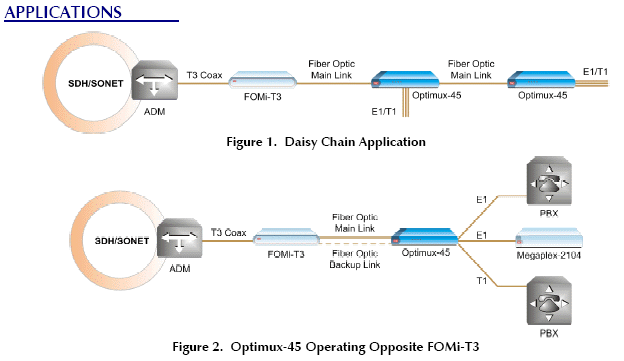

Optimux-45 Fiber Optic Multiplexer from RAD provides a simple, flexible and cost-effective solution for transporting multiple T1 and E1 signals at distances of up to 110 km (68 miles). The Optimux-45 Fiber Optic Multiplexer from RAD integrates up to 28 T1, 21 E1, or combinations of T1 and E1 channels, over a single 45 Mbps data steam. This provides an easily configurable solution, flexible enough to meet the specific requirements of a broad range of applications. The Optimux-45 Fiber Optic Multiplexer from RAD conforms to ITU G.703, G.747, G.823, G.824, ANSI T1.107, T1.404, RFC2495, RFC2496 standards. The Optimux-45 Fiber Optic Multiplexer from RAD Fiber Optic Multiplexer from RAD supports chain, as well as ring configurations, facilitating several E1 or T1 services at each node. In ring topology (see Figure 3), Optimux-45 Fiber Optic Multiplexer from RAD provides a full path protection mechanism that enables the nodes to maintain all communication services, even in the event of a link failure. Special partially equipped versions are available for ring and chain applications with different number of tributary channels (see Table 1 for details). Ring or chain configuration is performed using RADview network management system. Two Optimux-45 units can be connected using WDM (Wavelength Division Multiplexing) or bidirectional technology over a single fiber (SF) link, thus reducing fiber cable costs by 50%. Various optical interfaces are
available for the fiber main link:
850 nm VCSEL for multimode fiber
1310 nm LED for multimode fiber
1310 and 1550 nm laser for extended range over single mode fiber
1310 and 1550 nm laser for single fiber WDM operation
1310 nm laser for single fiber/single wavelength operation
When required, critical hardware components can be backed up. This ensures that any single point of failure will not disrupt the entire
system. An optional hot-swappable second main link provides backup, using automatic switchover upon link failure. An optional second power supply provides power redundancy for fail-safe operation.

Optimux-45 Fiber Optic Multiplexer from RAD key features include:
- Multiplexes up to 28 T1 or 21 E1 channels into a single 45 Mbps data stream
- Supports a combination of T1 and E1 channels
- Supports ring and chain configurations
- Transmission over coax or fiber optic cable
- Supports single mode fiber, multimode fiber and single fiber (WDM) interface
- Laser diode option
- Range up to 110 km/68 miles
- Optional second power supply provides redundancy
- Optional second main link for automatic backup
- SNMP agent is managed via ASCII terminal, Telnet host, ConfiguRAD Web-based remote access terminal or RADview network management system
- Compact 1U high enclosure

Optimux-45 - Table 1



Optimux-45 Fiber Optic Multiplexer from RAD



Data sheet for Optimux-45 Fiber Optic Multiplexer from RAD (pdf)

Popular models  include:

OP-45/B/12X/48/R/STC/SC/13L/D FIBER OPTIC MULTIPLEXER WITH
OP-45/B/12X/AC/R/STC/SC/13L/D FIBER OPTIC MULTIPLEXER WITH
OP-45/B/12X/AD/STC/SC/13L/D FIBER OPTIC MULTIPLEXER WITH ADM
OP-45/B/28X/48/R/STC/ST/85/D 45Mbps Opt. multiplex
OP-45/B/28X/AC/R 45Mbps Opt. multiplex
OP-45/B/28X/AC/R/SC13 45Mbps Opt. multiplex Multi mode
OP-45/B/28X/AC/R/ST/13LH FIBER OPTIC MULTIPLEXER W/ ADM
OP-45/B/28X/AC/R/ST85L 45Mbps Opt. multiplex
OP-45/B/28X/AC/SC85L FIBER OPTIC MULTIPLEXER WITH ADM
OP-45/B/8X/AC/R/ST/13 FOM w/ADM, Bal E1,8T1/6E1 bal ports,
OP-45/B/8X/AC/R/ST/13L FIBER OPTIC MULTIPLEXER WITH ADM
OP-45B/28X/24/CX 45Mbps Opt. multiplex RING,28T1/21E1,RJ45,2
OP-45B/28X/24/R/CX/D/WR 45 MBPS OPTICAL MUX, RING, 28T1, 21
OP-45B/28X/24/R/ST13L/D 45 MBPS OPTICAL MUX, RING, 28T1, 21
OP-45B/28X/24/R/ST85/D 45Mbps Opt. multiplex
OP-45B/28X/48/CX 45Mbps Opt. multiplex,28T1/21E1,RJ45,2 24 VDC
OP-45B/28X/48/R/CX/D 45 MBPS OPTICAL MUX, RING, 28T1, 21 E1,
OP-45B/28X/48/R/CX/D/WR 45 MBPS OPT. MUX, MUST ALSO ORDER
OP-45B/28X/48/R/SC/SF1/D PDH fiber optic multiplexer, G.747,
OP-45B/28X/48/R/SC/SF2/D Opt Mux,Ring,Bl,28T1/21E1, RJ45 user
OP-45B/28X/48/R/SC13L 45 Mbps OPT, MULTIPLEX 48 vdc T1 /
OP-45B/28X/48/R/SC13L/D 45 Mbps OP Mulitplex, RING,
OP-45B/28X/48/R/SC85 45 Mbps OPT, MULTIPLEX 48 vdc T1 / 21E1,
OP-45B/28X/48/R/SC85/D 45Mbps Opt. multiplex
OP-45B/28X/48/R/ST13/D 4 MBPS OPT MULTIPLEX RING, 28T1/21E1,
OP-45B/28X/48/R/ST13L 45 MBPS OPT MULITPLEX, 28 T1/21E1, RJ45
OP-45B/28X/48/R/ST13L/D 45 MBPS OPTICAL MUX, RING, 28T1, 21
OP-45B/28X/48/R/STC/CX 45Mbps Opt. multiplex RING,redundand
OP-45B/28X/48/R/STC/CX/D 45Mbps Opt. multiplex
OP-45B/28X/48/R/STC/SC85/D 45Mbps Opt. multiplex
OP-45B/28X/48/SC/SF2 45Mbps Opt Mux,Ring,Bl,28T1/21E1, RJ45
OP-45B/28X/AC/CX 45 MBPS OPT MUX AC POWER, COAX LINK
OP-45B/28X/AC/R/CX 45 MBPS OPT MUX REDUNDANT AC POWER, COAX
OP-45B/28X/AC/R/CX/D PDH OPTICAL MUX, RING, 28T1/2E1, RJ45,
OP-45B/28X/AC/R/CX/D/WR 45 MBPS OPTICAL MUX, RED AC POWER,
OP-45B/28X/AC/R/FC13L/D OPTIMUX RING 28 T1, 21 E1, RNDT POWER
OP-45B/28X/AC/R/FC13L/D/BLANK 45Mbps Opt. multiplex
OP-45B/28X/AC/R/FC13LH/D 45Mbps Optical
OP-45B/28X/AC/R/SC/SF1/D 45 MBPS,OPT,MULTIPLEX,RING,
OP-45B/28X/AC/R/SC/SF2/D 45 MBPS OPT MULTIPLEX RING,
OP-45B/28X/AC/R/SC13/D 45 MBPS OPT MULIPLE RINGS 28T1/21E1,
OP-45B/28X/AC/R/SC13L 45Mbps Opt. multiplex
OP-45B/28X/AC/R/SC13LD T3 FIBER MUX, REDUNDANT AC POWER, DUAL
OP-45B/28X/AC/R/SC15LH/D 45Mbps Opt. multiplex
OP-45B/28X/AC/R/SC85 45Mbps Opt. multiplex
OP-45B/28X/AC/R/SC85/D 45 MBPS OPTICAL MUX, RING, 28 T1, 21
OP-45B/28X/AC/R/ST13/D 45 MBPS OPT. MULTIPLEX RING, 28T1,
OP-45B/28X/AC/R/ST13L 45Mbps Opt.
OP-45B/28X/AC/R/ST13L/D 45 MBPS OPT. MUX, RING, 28T1/21E1,
OP-45B/28X/AC/R/ST85 45Mbps Opt.
OP-45B/28X/AC/R/ST85/D 45 MBPS OPT MUX,RING
OP-45B/28X/AC/R/STC/SC/SF3/D 45Mbps Opt. multiplex
OP-45B/28X/AC/R/STC/SC13/D 45 MBPS OPT. MULTIPLEX RING,
OP-45B/28X/AC/R/STC/SC85D 45 MBPS OPT MULTIPLEX RING 28T1
OP-45B/28X/AC/R/STC/ST13/D 45Mbps Opt. multiplex
OP-45B/28X/AC/SC13L BALANCED, 28T1 21E1 INTERFACE,AC,1310NM
OP-45B/28X/AC/ST13L 45 MBPS OPT MULTIPLEX RING, 28T1/21E1,RJ45
OP-45B/28X/AD/CX/D/WR 45Mbps Opt. multiplex
OP-45B/28X/AD/ST13L/D PDH Optical Mux. Ring, 4T1/3E1, RJ45,
OP-45B/4X/48/R/CX 45Mbps Opt. multiplex RING, 4T1/3E1, RJ45
OP-45B/8X/AC/R/SC85/D 45Mbps Opt. multiplex

Immediate price quote - Call 727-398-5252 or e-mail cs@bestdatasource.com

Don't forget to ask about  RADCare support for your RAD products.
