ETS-1-10G Ethernet Access Switch

RAD ETS-1-10G Ethernet Access Switch

Applications include: Transportation and Utilities

Key features of the RAD ETS-1-10G include:

L2+ switches
Stacking support
Multicast support (IGMP Snooping, MRV)
Advanced security (with multi-layer ACL, IP Source Guard, and Dynamic ARP Inspection)

MARKET SEGMENTS AND APPLICATIONS FOR THE RAD ETS-1-10G

New generation access switches provide end users connectivity to large-scale corporate networks, small and medium business networks, and service provider networks, using 1G/10G interfaces.
The switches support physical stacking, VLANs, multicast groups, and advanced security.

INTERFACE of ETS-1-10G

Head-of-line blocking (HOL) protection
Back pressure
Auto MDI/MDIX
Jumbo frames
Flow control (IEEE 802.3X)
Port mirroring
Stacking

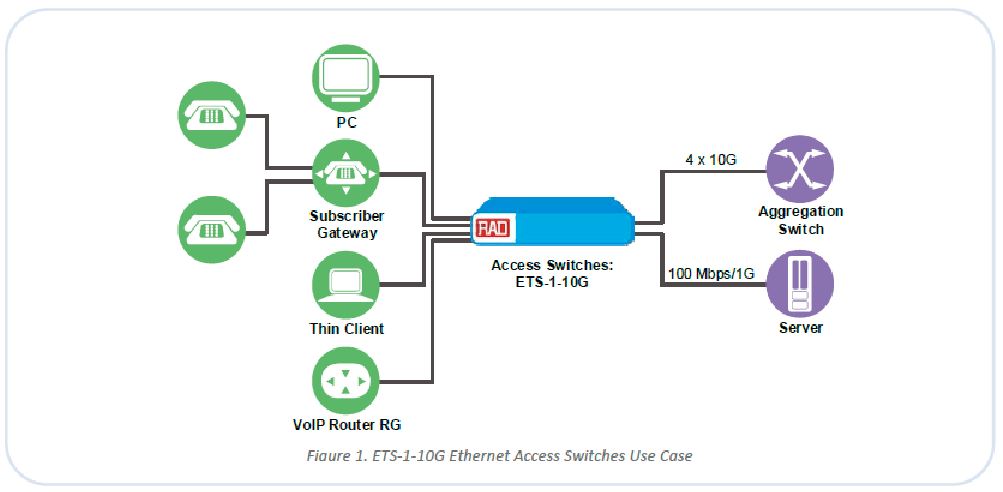

The utility industry can really benefit from the features RAD ETS-1-10G Ethernet Access Switch.

MAC TABLE of RAD ETS-1-10G

Independent learning mode per VLAN
MAC Multicast Support
Configurable aging time of MAC addresses
Static MAC Entries

MAC Flapping logging with RAD ETS-1-10G

VLAN
Voice VLAN
802.1Q
Q-in-Q
Selective Q-in-Q
GVRP

L2 MULTICAST

Multicast profiles
Static Multicast groups
IGMP Snooping v1,2,3
Port/host-based IGMP Snooping Fast Leave
IGMP proxy-report (for PoE options)
IGMP authorization via RADIUS
MLD Snooping v1,2
IGMP querier
MVR

L2 - RAD ETS-1-10G Ethernet Access Switch

STP (Spanning Tree Protocol, IEEE 802.1d)
RSTP (Rapid Spanning Tree protocol, IEEE 802.1w)
MSTP (Multiple Spanning Tree, IEEE802.1s)
STP Multiprocess
PVSTP+
Spanning Tree Fast Link option
STP Root Guard
STP Loop Guard
BPDU Filtering
STP BPDU Guard
VLAN-based Loopback Detection (LBD)
ERPS (G.8032v2)
Private VLAN Layer 2 Protocol Tunneling

L3 - RAD ETS-1-10G Ethernet Access Switch

Static IP routes
Dynamic routing protocols RIPv2, OSPFv2, OSPFv3, BGP (requires license, see Ordering)
Address Resolution Protocol (ARP)

VRRP

PIM SM, PIM DM, IGMP Proxy
ECMP Load Balancing
IP Unnumbered

LINK AGGREGATION

Static LAG
Dynamic LAG (LACP)
LAG Balancing Algorithm
IPV6
IPv6 Host
Dual-stack

SERVICE - RAD ETS-1-10G Ethernet Access Switch

Virtual Cable Testing (VCT)
Optical transceiver diagnostics
Green Ethernet

SECURITY WITH ETS-1-10G

DHCP Snooping
DHCP Option 82
IP Source Guard
Dynamic ARP Inspection
sFLow
MAC-based authentication, Port Security, Static MAC entries
Port-based authentication IEEE 802.1x
DoS attack prevention
Traffic segmentation
Protection against non-authorized DHCP servers
DHCP clients filtering
BPDU attacks prevention
NetBIOS/NetBEUI filtering
PPPoE Intermediate Agent

ACL (ACCESS CONTROL LISTS)

L2-L3-L4 ACL
Time-Based ACL
IPv6 ACL
ACL based on:
• Physical port number
• IEEE 802.1p
• VLAN ID
• EtherType
• DSCP
• Protocol type
• TCP/UDP port number
• User Defined Bytes

QUALITY OF SERVICE (QOS) AND RATE LIMITING ABILITIES OF RAD ETS-1-10G

QoS statistics
Shaping, policing
IEEE 802.1p Class of Service (CoS)
Storm Control
Bandwidth management
Scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
Three marking colors
ACL-based CoS/DSCP mark assignment
Setting the IEEE 802.1p priority for management VLAN
DSCP to CoS/CoS to DSCP remarking
ACL-based VLAN assignment
802.1p, DSCP mark assignment for IGMP

OAM/CFM

802.3ah Ethernet Link OAM
Dying Gasp
802.3ah Unidirectional Link Detection (UDLD)

MAIN MANAGEMENT OF RAD ETS-1-10G

Download and upload of configuration file via TFTP/SCP
Redirecting output of CLI commands to an arbitrary file on ROM
SNMPv3
Command Line Interface (CLI)
Web interface
Syslog
SNTP (Simple Network Time Protocol)
Traceroute
LLDP (802.1ab) + LLDP MED
Access control – privilege levels
Management interface blocking
Local authentication
IP addresses filtering for SNMP
RADIUS, TACACS+ clients
SSH server
SSL
Macro commands
CLI commands logging
System log
DHCP autoprovision
DHCP Relay (IPv4 support)
DHCP Option 12
DHCP Relay Option 82
PPPoE Circuit-ID tag
Flash File System
Debugging commands
Rate limit of traffic to CPU
Password encryption
Password recovery
Ping (IPv4/IPv6 support)
DNS server
DNS client

MONITORING

Statistics on interfaces
RMON/SMON
CPU utilization monitoring per task and per traffic type
Temperature monitoring
TCAM utilization monitoring
RAM utilization monitoring

Ordering

ETS-1-10G/4SP/24U/AC Ethernet switch L2+, 24 ports of 10/100/1000BASE-T, 4 ports of 10GBASE-X (SFP+)/1000BASE-X (SFP), 220V AC
ETS-1-10G/4SP/24U/DC Ethernet switch L2+, 24 ports of 10/100/1000BASE-T, 4 ports of 10GBASE-X (SFP+)/1000BASE-X (SFP), 48V DC
ETS-1-10G/4SP/4CMB/20S/DC Ethernet switch L2+, 20 ports of 1000BASE-X/1000BASE-FX (SFP), 4 ports of 10/100/1000BASE-T/1000BASE-X/100BASE-FX Combo, 4 ports of 10GBASE-X (SFP+)/1000BASE-X (SFP), 48V DC
ETS-1-10G/4SP/4CMB/20S/DCR Ethernet switch L2+, 20 ports of 1000BASE-X/1000BASE-FX (SFP), 4 ports of 10/100/1000BASE-T/1000BASE-X/100BASE-FX Combo, 4 ports of 10GBASE-R/1000BASE-X (SFP+/SFP), dual 48V DC
ETS-1-10G/4SP/4CMB/20S/12V/AC Ethernet switch L2+, 20 ports of 1000BASE-X/100BASE-FX (SFP), 4 ports of 10/100/1000BASE-T/1000BASE-X/100BASE-FX Combo, 4 ports of 10GBASE-R (SFP+)/1000BASE-X (SFP), 220V AC, 12V DC
ETS-1-10G/4SP/4CMB/20S/ACR Ethernet switch L2+, 20 ports of 1000BASE-X/1000BASE-FX (SFP), 4 ports of 10/100/1000BASE-T/1000BASE-X/100BASE-FX Combo, 4 ports of 10GBASE-R/1000BASE-X (SFP+/SFP), dual 220V AC
ETS-1-10G/4SP/48S/AC Ethernet switch L2+, 48 ports of 10/100/ 1000BASE-T, 4 ports of 10GBASE-X (SFP+)/1000BASE-X (SFP), 220V AC
ETS-1-10G/4SP/24P/AC Ethernet switch L2+, 24 ports of 10/100/1000BASE-T with PoE/PoE+, 4 ports of 10GBASE-X (SFP+)/1000BASE-X (SFP), 220V AC
ETS-1-10G/4SP/24P/DC Ethernet switch L2+, 24 ports of 10/100/1000BASE-T with PoE/PoE+, 4 ports of 10GBASE-X (SFP+)/1000BASE-X (SFP), 48V DC
ETS-1-10G/4SP/48P/AC Ethernet switch L2+, 48 ports of 10/100/1000BASE-T with PoE/PoE+, 4 ports of 10GBASE-X (SFP+)/1000BASE-X (SFP), 220V AC
ETS-1-BGP-LIC
License for using BGP protocol

Data sheet for ETS-1-10G RAD ETS-1-10G data sheet
