RAD Data Communications - Authorized Distributor

RAD TDMoIP with IPMUX

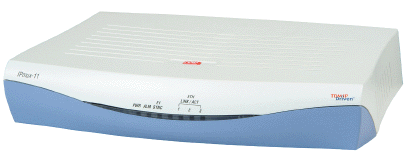

IPmux-11 IPmux-11

IPmux-11 from RAD is a TDMoIP gateway optimized for small and medium-sized enterprise sites. The RAD IPmux-11 offers Ethernet-based access, as well as extension of TDM-based legacy services over packet switched networks.
RAD IPmux-11 information

IPmux-14 Description

IPmux-14 from RAD is a TDMoIP gateway optimized for small and medium-sized enterprise sites. The IPmux-14 offers Ethernet-based access, as well as extension of TDM-based legacy services over packet switched networks.
RAD IPmux-14 information

RAD white paper on TDMoIP versus VoIP pdf

RAD IPmux-1E

IPMUX-1E/AC/4BRI/UTP IPMUX-1E, 100-240 VAC, 4 ISDN BRI S
IPMUX-1E/AC/4BRI/UTP/UTP IPMUX-1E, 100-240 VAC, 4 ISDN BRI S
IPMUX-1E/AC/4E&M/UTP IPMUX-1E, 100-240VAC, 4 E&M, UTP
IPMUX-1E/AC/4FXO-EC/UTP/UTP IPMUX-1E, 100-240 VAC, 4FXO,
IPMUX-1E/AC/4FXO/SM-LC/UTP IPMUX-1E, 100-240 VAC, 4 FXO,
IPMUX-1E/AC/4FXO/SM-SC IPMUX-1E, 100-240 VAC, 4 FXO, SINGLE
IPMUX-1E/AC/4FXO/UTP IPMUX-1E, 100-240VAC, 4 FXO, UTP ETH
IPMUX-1E/AC/4FXO/UTP/UTP IPMUX-1E, 100-240VAC, 4 FXO, UTP ETH
IPMUX-1E/AC/4FXS-EC/UTP/UTP IPMUX-1E, 100-240 VAC, 4FXS,
IPMUX-1E/AC/4FXS/MM-LC/UTP IPMUX-1E, 100-240 VAC, 4 FXS,
IPMUX-1E/AC/4FXS/SM-LC/UTP IPMUX-1E, 100-240 VAC, 4 FXS,
IPMUX-1E/AC/4FXS/SM-SC IPMUX-1E, 100-240 VAC, 4 FXS, SINGLE
IPMUX-1E/AC/4FXS/UTP IPMUX-1E, 100-240VAC, 4 FXS, UTP ETH
IPMUX-1E/AC/4FXS/UTP/UTP IPMUX-1E, 100-240 VAC, 4FXS, UTP ETH



RAD IPmux-16
TDMoIP Gateway

IPmux-16 is a carrier class TDMoIP gateway enabling E1/T1 circuit extension over IP networks
Supports synchronous TDM?based services over IP and Ethernet networks
Multiplexes up to 16 E1/T1 circuits
Point-to-point and point-to-multipoint based on IP addressing
Totally transparent to all signaling protocols running over E1/T1
Extends either framed (full or fractional) or unframed E1/T1 circuits
E1/T1 frames or bundles of time slots are transported over the network based on IP addressing
Integrated DS0 level grooming and cross connect between E1 or T1 ports
The RAD IPmux-16 has a 10/100BaseT uplink to the network
QoS support:
Ln Labeling IP level priority (ToS)
VLAN tagging and priority labeling according to IEEE 802.1 p&q
Low processing delay (under 2 msec)
Enables synchronous clock distribution across IP-based networks
Compensates for packet delay variation up to 32 msec for E1, 24 msec for T1
Redundant, hot-swappable power supplies in the RAD IPmux-16
Management interfaces: SNMP, TELNET, TFTP and XMODEM with enhanced management tools and features
Compact platform, 1.5U high, 19" rack compatible enclosure

RAD IPmux-16 carrier class TDMoIP gateway enabling E1/T1 circuit extension over IP networks (pdf data sheet)

RAD IPmux-16 carrier class TDMoIP gateway enabling E1/T1 circuit extension over IP networks (pdf installation and operation manual)

IPMUX-16/48 IPMUX-16 CHASSIS, -48VDC POWER
IPMUX-16/48/R IPMUX-16 CHASSIS , -48VDC, REDUNDANT POWER
IPMUX-16/AC IPMUX-16 CHASSIS, 100-240 VAC
IPMUX-16/AC/R IPMUX-16 CHASSIS, REDUNDANT 100-240 VAC
IPMUX-16/E1/48/R IPMUX-16 CHASSIS, REDUNDANT -48VDC POWER,
IPMUX-16/E1/AC/R IPMUX-16 CHASSIS, REDUNDANT 100-240VAC
IPMUX-16/PS/AC AC POWER SUPPLY FOR IPMUX-16
IPMUX-16/PS/DC DC POWER SUPPLY FOR IPMUX-16
IPMUX-16/T1/48 IPMUX-16 CHASSIS, -48VDC POWER, EXTERNAL CLOCK
IPMUX-16/T1/48/R IPMUX-16 CHASSIS, -48VDC REDUNDANT POWER,
IPMUX-16/T1/AC IPMUX-16 CHASSIS, AC POWER, EXTERNAL CLOCK
IPMUX-16/T1/AC/R IPMUX-16 CHASSIS, 100-240VAC REDUNDANT

IPmux-4
TDMoIP Gateway

IPmux-4 is a TDMoIP gateway enabling E1/T1 extension over IP networks
Supports synchronous TDM-based services over IP and Ethernet networks
Multiplexes up to 4 E1/T1 circuits
Supports CAS signaling and is totally transparent to all other signaling protocols running over E1/T1
Extends either framed (full or fractional) or unframed E1/T1 circuits
E1/T1 frames, or bundles of timeslots, are transported over the network based on IP addressing
Integrated time slot level grooming and cross connect between E1 or T1 ports
10/100BaseT uplink to the network
QoS support:
Labeling IP level priority (ToS)
VLAN tagging and priority labeling according to IEEE 802.1 p&q
Low processing delay (under 2 msec)
Enables synchronous clock distribution across IP-based networks
The RAD IPmux-4 compensates for packet delay variation up to 32 msec for E1 or 24 msec for T1 circuits
Redundant power supplies
Management interfaces: SNMP, TELNET, TFTP and XMODEM with enhanced management tools and features
Compact platform, 1U high, 19" enclosure

RAD IPmux-4 TDMoIP 4 T1 gateway pdf data sheet

RAD IPmux-4 TDMoIP 4 T1 pdf installation and operation manual

PMUX-4/48 IPMUX-4 CHASSIS, -48VDC
IPMUX-4/48/R IPMUX-4 CHASSIS, -48VDC REDUNDANT POWER
IPMUX-4/AC IPMUX-4 CHASSIS, 100-240VAC
IPMUX-4/AC/R IPMUX-4 CHASSIS, 100-240VAC REDUNDANT POWER
IPMUX-4M/E1/1/ETH 1 PORT E1 MODULE FOR IPMUX-4 (INCLUDES UTP
IPMUX-4M/E1/4/ETH 4 PORT E1 MODULE FOR IPMUX-4 (INCLUDES UTP
IPMUX-4M/E1CX/1/ETH 1 PORT E1 MINI BNC (COAX) MODULE FOR
IPMUX-4M/E1CX/4/ETH 4 PORT E1 MINI BNC (COAX) MODULE FOR
IPMUX-4M/T1/1/ETH 1 PORT T1 MODULE FOR IPMUX-4 (INCLUDES UTP
IPMUX-4M/T1/4/ETH 4 PORT T1 MODULE FOR IPMUX-4 (INCLUDES UTP

RAD TDMoIP IPmux-8

IPMUX-8/AC IPMUX-8 CHASSIS, 100-240 VAC
IPMUX-8/AC/R IPMUX-8 CHASSIS, REDUNDANT 100-240VAC
IPMUX-8/DC/R IPMUX-8 CHASSIS, REDUNDANT -48 VDC
IPMUX-8M/E1/4 4 PORT E1 MODULE FOR IPMUX-8
IPMUX-8M/T1/4 4 PORT T1 MODULE FOR IPMUX-8


RAD IPmux-8 TDMoIP 8 T1 pdf data sheet

RAD IPmux modules

IPMUX-M/E1/4 4 PORT E1 MODULE FOR IPMUX-16
IPMUX-M/E1/8 8 PORT E1 MODULE FOR IPMUX-16
IPMUX-M/E1CX/8 8 PORT E1 MODULE W/ MINI BNC (COAX) FOR
IPMUX-M/ETH ETHERNET MODULE FOR IPMUX-16
IPMUX-M/T1/4 4 PORT T1 MODULE FOR IPMUX-16
IPMUX-M/T1/8 8 PORT T1 MODULE FOR IPMUX-16
IPMUX-M/T3 T3 MODULE FOR IPMUX



Immediate price quote - Call 727-398-5252 or e-mail cs@bestdatasource.com

Don't forget to ask about  RADCare support for your RAD products.
