RAD TinyBridge -This was replaced by the TinyBridge-100

Features of the RAD TinyBridgeTINYBRIDGE/U/530 TINYBRIDGE/U/V35 TINYBRIDGE/U/530, TINYBRIDGE/U/V35

bulletRAD TinyBridge (  TINYBRIDGE/U/530 , TINYBRIDGE/U/V35 ) is a High performance bridge for Ethernet extension
bulletFully compatible with IEEE802.3 / Ethernet V.2
bulletAUI or 10BaseT LAN interfaces
bulletLink interfaces: V.24, V.35, V.36, RS-530, X.21; internal fiber optic or 4-wire modems
bulletTransparent simplex, half duplex or full duplex support on the WAN interface
bulletWAN link rate of up to 10 Mbps sync or up to 115.2 kbps async
bullet15,000 frames per second filtering and forwarding rate
bullet256-frame buffer
bullet10,000 MAC address LAN table
bulletAutomatic learning and aging with the RAD TinyBridge
bulletEnhanced TinyGram compression
bulletNo external power supply needed for AUI option of the RAD TinyBridge

RAD TinyBridge TinyBridge (  TINYBRIDGE/U/530 , TINYBRIDGE/U/V35 ) description

bulletRAD TinyBridge (  TINYBRIDGE/U/530 , TINYBRIDGE/U/V35 )  is a high performance, remote, self-learning Ethernet bridge. Its small size and low cost make it ideal for sensitive bridging applications or as a LAN extender or segmenter over bit stream type infrastructures.
bulletRAD TinyBridge is available with one of two Ethernet interfaces: 10Base5 (AUI) or 10BaseT (UTP). The 10BaseT interface can also operate in full duplex Ethernet topologies. No external power supply is required for the AUI interface.
bulletA choice of WAN interfaces is available:
Interface Description
V.24 / RS-232 Async or sync
V.35 Sync
V.36 / RS-422 Sync
X.21 Sync
RS-530 Sync
Fiber optic (FC or ST) Multimode or single mode
4-wire Cat. 3 UTP, Level 5 UTP, IBM type 1 or telephone cabling
bullet TinyBridge (  TINYBRIDGE/U/530 , TINYBRIDGE/U/V35 ) supports operation of up to 10 Mbps synchronous links or 115.2 kbps asynchronous links. In asynchronous mode, an internal baud rate generator can be used to generate seven standard bit rates within the range of 9.6 kbps to 115.2 kbps. An external clock can be supplied for operation at other bit rates. HDLC-like framing is used in accordance with RFC 1662. See the Installation and Operation documentation for configuration and operation details at different asynchronous link speeds.
bulletRAD TinyBridge automatically learns MAC addresses on the LAN to which it is connected and forwards only those frames destined for another LAN. Its LAN table stores up to 10,000 addresses and is automatically updated.
bulletFiltering and forwarding is performed at the maximum theoretical rate of 15,000 frames per second (wire speed). The buffer can hold 256 frames with a throughput latency of one frame. Filtering can be disabled for extender or segmenter applications, allowing all traffic to flow over the WAN link.
bulletEnhanced TinyGram compression increases data throughput by stripping the padding bits in 64-byte frames. When disabled, frames are transmitted as is.

TinyBridge TinyBridge (  TINYBRIDGE/U/530 , TINYBRIDGE/U/V35 ) Applications

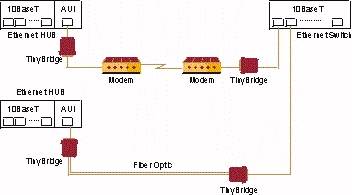

TinyBridge (  TINYBRIDGE/U/530 , TINYBRIDGE/U/V35 ) application 1

Figure 1. Ethernet Bridging/Extension over Baseband Modem and Fiber Optic Links

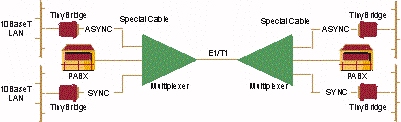

TinyBridge (  TINYBRIDGE/U/530 , TINYBRIDGE/U/V35 ) application 2


Figure 2. Ethernet Bridging over Multiplexed E1/T1 Links

RAD Tiny Bridge application #4


Figure 3. Ethernet Extension over 4-wire in the Campus Enviroment

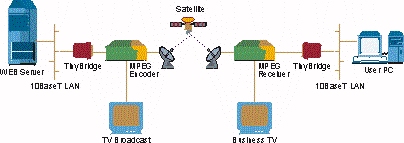

TinyBridge (  TINYBRIDGE/U/530 , TINYBRIDGE/U/V35 ) application 5


Figure 4. Data Broadcast over Satellite



Ordering the RAD TinyBridge

TINYBRIDGE/@/#/$

TINYBRIDGE-4W/@/$

Miniature Remote Ethernet Bridge

@ Specify LAN interface:
A for AUI (10Base5)
U for UTP (10BaseT)
# Specify WAN interface:
V24 for V.24/RS-232
V35F for V.35 (female adapter cable supplied)
V35M for V.35 (male adapter cable supplied)
V36 for V.36 (adapter cable supplied)
530 for RS-530
X21F for X.21 (female adapter cable supplied)
X21M for X.21 (male adapter cable supplied)
ST85 for 850 nm multimode ST connector
ST13 for 1300 nm single mode ST connector
FC85 for 850 nm multimode FC connector
FC13 for 1300 nm single mode FC connector
$ Specify AC for 90-264 VAC switching power supply with integral AC connector
(may be ordered separately as P/S-AC/12/800)



bulletTINYBR-4W/A/AC REMOTE MINIATURE ETHERNET BRIDGE
bulletTINYBR-4W/U/AC MINIATURE REMOTE ETHERNET BRIDGE
bulletTINYBRIDGE/A/530 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/A/FC13 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/A/ST13 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/A/V24 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/A/V35 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/A/V35/M MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/A/V36 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/A/X21 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/530 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletRAD TINYBRIDGE/U/530/AC Remote Ethernet Bridge with power supply
bulletTINYBRIDGE/U/FC13 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/ST13 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/ST85 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/V24 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/V35 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/V35/M MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/V36 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/V36/AC TINYBRIDGE, UTP, V36, AC PWR
bulletTINYBRIDGE/U/V36/M MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/X21 MINIATURE REMOTE ETHERNET BRIDGE - ALSO
bulletTINYBRIDGE/U/X21/M MINIATURE ETHERNET BRIDGE, UTP, X21 MALE
