Low Cost T1 Router, WebRanger II ( WR2/T1/U ) from RAD
$490/each - Limited time offer - Call 727-398-5252
today!

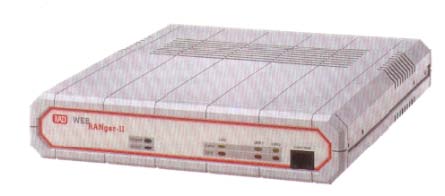

Low Cost T1 Router, WebRanger II ( WR2/T1/U ) Connects small or medium size offices to the Internet/Intranet with a built in CSU/DSU. This Low Cost T1 Router, WebRanger II ( WR2/T1/U ) supports IP/IPX routing and standard bridging. There are other models but this version is for use on a T1 or Fractional T1 and provides a single Ethernet port for connection to your LAN.
Other features of this Low Cost T1 Router, WebRanger II ( WR2/T1/U ), include:
Solid Firewall (session-based) protection
NAT and Single IP address translation
DHCP server
PAP/CHAP security
Quick setup and configuration
SNMP and Telnet support
FLASH memory for software and parameter file downloading
Technical information for this Low Cost T1 Router, WebRanger II ( WR2/T1/U )
Signal Level
Receive: 0 to -36 dB with CSU
Transmit: 0, -7.5, -15, -22.5dB with CSU
Jitter Performance As per AT&T TR-62411
T1 Connector is an RJ-48c 8-pin
This Low Cost T1 Router, WebRanger II ( WR2/T1/U ) is in compliance with AT&T TR 62411, ANSI T1.403
Diagnostics:
User activated local and remote loopbacks
Network activated loops and FDL loops
(RLB, LLB)
Compliance:
ETS 300012, I.430, NTT, 5ESS, DMS-100, NI1
ROUTING:
Types supported by this Low Cost T1 Router, WebRanger II ( WR2/T1/U ) are STATIC, RIP-I, RIP-2, RIP/SAP.
Standards
Conforms to Ethernet / IEEE 802.3
LINK INTERFACE
Protocols
PPP and MLPPP
Frame Relay - RFC 1490
HDLC
Compliance with ITU G.921, G.956
GENERAL
Indicators on the Low Cost
T1 Router, WebRanger II ( WR2/T1/U )
POWER (green) ON when unit is powered
READY (green) ON when packets can be transferred
LAN DATA (yellow) ON when a packet is received or transmitted on LAN side
LAN ERROR (red) ON when LAN interface indicates an error
LINK DATA (yellow) ON when a packet is received or transmitted on LINK side
LINK ERROR (red) ON when LINK interface indicates an error
RED ALARM (red) ON when T1 interface detects red alarm
YEL ALARM (yellow) ON when T1 interface detects yellow alarm
Low Cost T1 Router, WebRanger II ( WR2/T1/U ), Power requirements
100-230 VAC, 47-63 Hz, 13 VA max
Low Cost T1 Router, WebRanger II ( WR2/T1/U ), Physical information
Height: 4.4 cm / 1.8 in (1U)
Length: 24.0 cm / 9.6 in
Width: 21.6 cm / 8.5 in
Weight: 1.16 kg / 2.55 lb
Operating Environment for the Low
Cost T1 Router, WebRanger II ( WR2/T1/U )
Temperature: 0-50°C / 32-122°F
Humidity: up to 90%, non-condensing
Low Cost T1
Router, WebRanger II ( WR2/T1/U ) data sheet (pdf)
Low Cost T1 Router, WebRanger
II ( WR2/T1/U ) operations manual (pdf)
