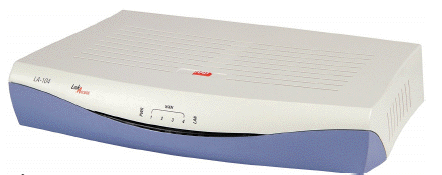

LA-104 ATM IAD (Integrated Access Device)

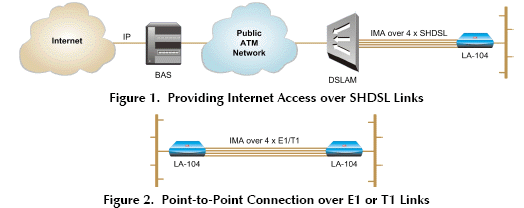

LA-104 is an ATM IAD (Integrated Access Device) that enables service providers to offer LAN services over up to four access lines to  small and medium size businesses. Using IMA over SHDSL, E1 or T1,LA-104 offers an up to 9.2 Mbps uplink connection and  enables backup between links for higher reliability. With adjustable bandwidth, LA-104 supports distances of up to 8 km (4.9 miles),  see Table 1 on the product data sheet. LA-104 supports IP routing and MAC bridging. Different service types over ATM are supported: Ethernet and IP, in accordance with RFC-2684. Various management interfaces are available, including inband and out-of-band
(SNMP) management, and local management via ASCII terminal. The LA-104 offers comprehensive diagnostics and statistics on all ports and network layers enable network control and fault localization.

The LA-104 supports:
Application layer statistics
ATM layer statistics and control (OAM support)
Physical layer diagnostics (loopback tests, statistics).
End-to-End QoS is measured using F5 OAM cells, including AIS, RDI, LB, CC and activation cells.
LA-104 is a compact, 1U-high unit.

LA-104 ATM IAD (Integrated Access Device) product data sheet (pdf)

            Immediate price quote - Call 727-398-5252 or e-mail cs@bestdatasource.com
