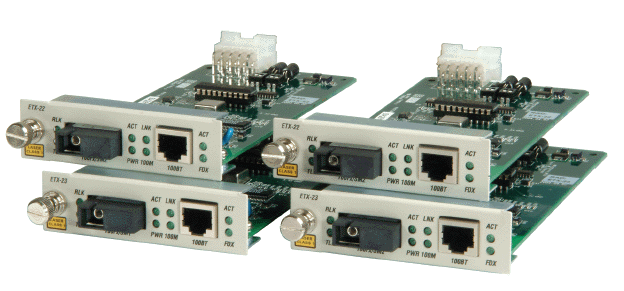

ETX-22, ETX-23 Fast Ethernet Layer 1 Single Strand Media Converters

ETX-22 and ETX-23 from RAD are single strand media converters that provide transparent conversion of optical and electrical signals for the Fast Ethernet service.

The ETX-22 and ETX-23 RAD single strand media converters are used to extend the operation distance between two copper Fast Ethernet devices via fiber optic infrastructure transparently and with no performance degradation.

The ETX-22 and ETX-23 cards can be installed in the following enclosures:

LRS-20, 16-slot 3U-high modular rack, accommodating up to 16 hot-swappable converter cards. The LRS-20 rack is intended for central site installation.

LRS-1, 1U high standalone unit, accommodating one converter card. LRS-1 is intended for installation at remote sites, or if only a single converter is required.

The ETX-22 and ETX-23 RAD single strand media converters use WDM technology to operate over single strand fiber optic cables. The ETX-22 and ETX-23 cards operate in the following combinations:

ETX-22/UTP/FE-1 and ETX-23/UTP/FE-1, converting between UTP and single mode fiber optic cables

ETX-22/UTP/FE-2 and ETX-23/UTP/FE-2, converting between UTP and single mode fiber optic cables, long haul

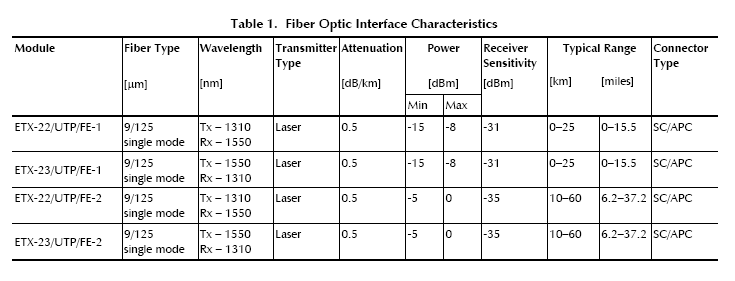

The ETX-22/UTP/FE-1 and ETX-22/UTP/FE-2 transmit on 1310 nm and receive on 1550 nm. The ETX-23/UTP/FE-1 and ETX-23/UTP/FE-2 transmit on 1550 nm and receive on 1310.

The UTP port of the ETX-22 and ETX-23 cards supports user-configurable MDI/MDIX function, correcting connection polarity errors. This allows using straight or crossed cables for the Ethernet connection.

The user-configurable fault propagation mechanism automatically shuts down the UTP port if a failure is detected on the fiber optic port. The UTP link is re-established when the fiber optic connection is restored.

The auto-negotiation function automatically matches the UTP port duplex mode and data rate to the user equipment requirements. LEDs indicate the fiber optic link status, data transmission and duplex modes statuses of the UTP port.

ETX-22 and ETX-23 RAD single strand media converter data sheet

            Immediate price quote - Call 727-398-5252 or e-mail cs@bestdatasource.com
