RAD Data Communications - Authorized Distributor

RAD Data Communications
ARC-101

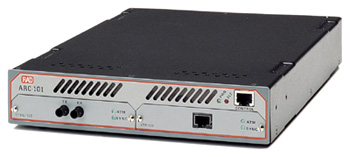

RAD ARC-101


Features of the RAD ARC-101

bulletModular ATM Rate and Media Converter
bulletConnects ATM devices with different rates and/or interfaces
bulletSupports Available Bit Rate (ABR) traffic management for avoiding cell loss
bulletTransparent to ATM protocols
bulletModules available for the following electrical interfaces:
bullet2 Mbps (E1) over coax/UTP
bullet34 Mbps (E3) over coax
bullet45 Mbps (T3) over coax
bullet155 Mbps (STS-3c) over Cat-5 UTP
bullet155 Mbps (STS-3c/STM-1) over coax
bulletSupports single mode or multimode 155 Mbps STS-3c/STM-1(SONET/SDH) optical interfaces:
bulletComplies with ATM forum specifications


Description of the RAD ARC-101

bulletARC-101, ATM rate and media converter, provides transparent rate and media conversion between two ATM interfaces by extracting ATM cells from one interface and sending them over the second one.
bulletRAD ARC-101 connects devices with dissimilar ATM interfaces. Alternatively, ARC-101 can be used in ATM testing environments, enabling module interchangeability according to the devices being tested.
bulletA large internal FIFO is used for rate adaptation between the two interfaces and for handling the bursty nature of the ATM traffic. Special circuitry is responsible for closing the ATM flow control loop according to ABR traffic management specifications in order to avoid FIFO overflow
bulletARC-101 supports a wide variety of ATM data rates and media types. These include:
E1, E3, T3 and STS-3c/STM-1 over optical and electrical interfaces.
bulletThe modular construction of the RAD ARC-101 and software based design of RAD ARC-101 enables easy migration to new ATM physical interfaces.
bulletBuilt-in diagnostics, configuration, statistics (including physical layer alarm surveillance/ performance monitoring) and ATM layer statistics are provided via the monitor connector (RS-232 ASCII terminal).
bulletThe RAD ARC-101 is supplied as a standalone unit. Special hardware for mounting one or two units in a 19" rack using minimal height of 1U can be ordered separately (see Ordering).

Applications for the RAD ARC-101

RAD ARC-101 Applications


Ordering the RAD ARC-101

ARC-101/#
ATM Rate and Media Converter
ARC-M/@
Interface module for ARC-101
# Specify power supply:


AC for 100-230V AC
DC for -48V DC

@ Specify module name:
(refer to tables 1 and 2)


RM-21
Hardware for mounting two units in a 19" rack

Product information:

bulletATM RATE & MEDIA CONVERTER RAD ATM
bulletATM RATE & MEDIA CONVERTER RAD ATM
bulletINTERFACE MODULE COAX 155 MBPS BNC CONN
bulletE1 MODULE FOR ARC-101 RAD ATM Rate and
bulletINTERFACE MODULE E3 BNC CONN RAD ATM Rate
bulletINTERFACE MODULE 1300NM MM SM CONN 155
bulletINTERFACE MODULE 1300 NM SINGLE MODE SC
bulletINTERFACE MODULE ST CONN 1300NM LASER
bulletINTERFACE MODULE 1300NM SM ST CONN 155
bulletINTERFACE MODULE T3 BNC CONN RAD ATM Rate
bulletINTERFACE MODULE; UTP W/SHIELDED RJ 45
bulletARC-101 T3 module
