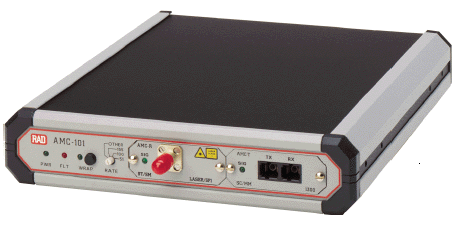

AMC-101 from RAD
AMC-101 from RAD is a modular universal media converter that provides retimed or transparent conversion of optical and electrical signals for ATM, SDH/SONET, FDDI, Fast Ethernet and other protocols at data rates of up to 155 Mbps.
The following modules are available:
Retimed modules, which provide clock regeneration and data reshaping (for 155 Mbps only)
Transparent modules, which provide low-cost conversion for applications that do not require repeating or reclocking.

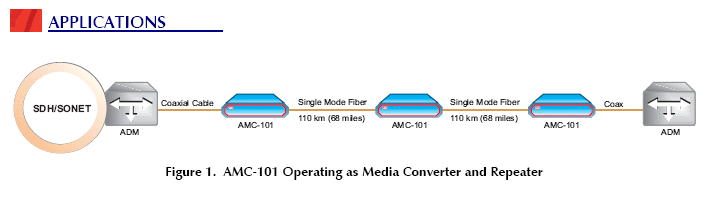

A long haul fiber optic option is available to provide an increased range of up to 110 km (68 miles).
The SF1, SF2 and SF3 options allow the units to operate over single strand fiber optic cables.
SF1 and SF2 use WDM technology. SF3 utilizes a unique proprietary transmission method (requires SC/APC connector).
AMC-101 RETIMED INTERFACES
The unit provides retimed media conversion for the following protocols over optical and copper cables:
51 Mbps OC-1
155 Mbps OC-3/STM-1
155 Mbps STS-3c over STP
155 Mbps STS-3c/STM-1 over coax
FDDI
Fast Ethernet.

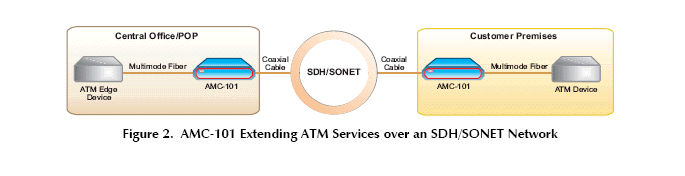

When used as a media and interface converter, AMC-101 provides a cost-effective alternative to the fiber optic interfaces of routers, ATM devices and ADMs.
AMC-101 TRANSPARENT INTERFACES
RAD AMC-101 with transparent interfaces provides cost-effective media conversion without repeating and reclocking.
Transparent modules are recommended for short range applications.
In fiber-to-fiber conversion applications AMC-101 supports all protocols above 1.5 Mbps and up to 155 Mbps, such as:
ATM/SDH/SONET
T1/E1
E3/T3
Token Ring
Ethernet.
AMC-101 data sheet (pdf)
RAD AMC-101 modules:
 | TINYBRIDGE MODULE FOR AMC-101 U INTERFACE |
| AMC-101 MODULE DUAL COAX BNC 155 MBPS
RETIMED |
| COAX MODULE FOR AMC-101 |
| AMC-101 MODULE MULTIMODE 1300NM
RE-TIMED. |
| AMC-101 MODULE MULTIMODE 1300NM |
| AMC-101 MODULE MULTIMODE 1300NM RE-TIMED |
| AMC-101 MODULE MULTIMODE 1300NM. |
| AMC-101 MODULE MULITMODE |
| AMC-101 MODULE, SINGLE FIBER, RETIMED |
| AMC-101 MODULE, SINGLE FIBER, RETIMED |
| AMC-101 MODULE SINGLE FIBER RETIMED 13TX
15RX |
| AMC-101 MODULE SINGLE FIBER |
| AMC-101 MODULE, SINGLE FIBER, RETIMED |
| AMC 101 MODULE, SINGLE FIBER RETIMED |
| AMC-101 MODULE SINGLE FIBER RETIMED 15TX
13RX |
| AMC-101 MODULE SINGLE FIBER |
| AMC-101 MODULE, SINGLE MODE, FC CONN,
1300 NM, RETIMED |
| AMC-101 MODULE SM 1300NM |
| AMC-101 MODULE SINGLE MODE 1300NM LASER
RETIMED |
| AMC-101 MODULE 1550NM FC CONN. LASER
RETIMED |
| AMC-101 MODULE, SC CONN, 1300NM, RETIMED |
| AMC-101 MODULE, SINGLE MODE, SC CONN,
1300NM, TRANSPARENT |
| AMC-101 MODULE SINGLE MODE SC CONN
1300NM LASER RETIMED |
| AMC-101 MODULE SINGLE MODE 1300NM LASER |
| AMC-101 MODULE, 1550NM LASER, RETIMED,
SC CONN |
| AMC-101 MODULE 1300NM SM LASER RETIMED |
| AMC-101 MODULE SINGLEMODE 1300NM
RE-TIMED |
| AMC-101 MODULE SINGLEMODE 1300NM FIBER
OPTIC DRIVER. |
| AMC-101 MODULE SINGLEMODE STCONN
1300NML RE-TIMED |
| AMC-101 MODULE SINGLE MODE 1300NM LASER |
| AMC-101 MODULE 1550NM ST CONN LASER
RETIMED |
| AMC-101 MODULE SINGLE MODE 1500NM LASER
RE-TIMED |
| AMC-101 MODULE UTP 1OOMPS RETIMD |
| AMC-101 MODULE UTP 100 MBPS |
| AMC-101 MODULE UTP 155 MBPS RE-TIMED. |
| AMC-101 MODULE UTP 155 MBPS. |
| AMC-M/SF1/SC/R |
| AMC-101 MODULE, SINGLE MODE, FC CONN,
1300 NM, RETIMED |
| AMC 101 MODULE, SINGLE FIBER RETIMED |
|
